SAMS70J21, SAME70 32-bit ARM Cortex-M7 MCUs

SAMS70J21 Description

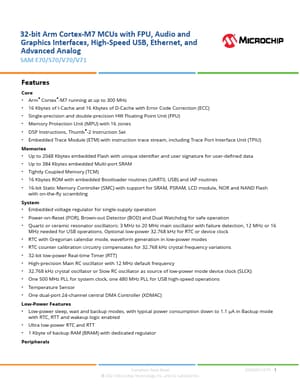

32-bit Arm Cortex-M7 MCUs with FPU, Audio and Graphics Interfaces, High-Speed USB, Ethernet, and Advanced Analog SAM E70/S70/V70/V71 .

SAMS70J21 Features

* Core
* Arm® Cortex®-M7 running at up to 300 MHz
* 16 Kbytes of I-Cache and 16 Kbytes of D-Cache with Error Code Correction (ECC)
* Single-precision and double-precision HW Floating Point Unit (FPU)
* Memory Protection Unit (MPU) with 16 zones
* DSP Instruction

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SAMS70J21, SAME70. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
SAMS70J21, SAME70
Manufacturer
Microchip ↗
File Size
17.29 MB
Datasheet
SAME70-Microchip.pdf
Description
32-bit ARM Cortex-M7 MCUs
Note
This datasheet PDF includes multiple part numbers: SAMS70J21, SAME70.
Please refer to the document for exact specifications by model.
