SST39VF3201C, 32 Mbit (x16) Multi-Purpose Flash Plus

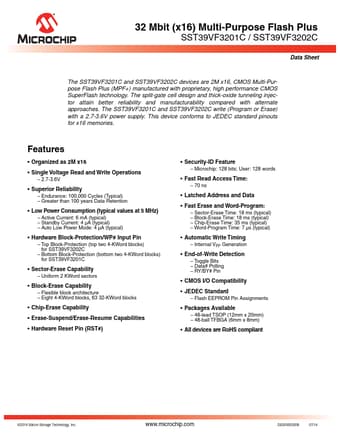

32 Mbit (x16) Multi-Purpose Flash Plus SST39VF3201C / SST39VF3202C Data Sheet The SST39VF3201C and SST39VF3202C devices are 2M x16, CMOS Multi-Purpose Flash Plus (MPF+) manufactured with proprietary, high performance CMOS SuperFlash technology.
The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.
The SST39VF3201C and SST39VF3202C write (Program or Erase) with a 2.7-3.6V power supply.
This device conform
SST39VF3201C Features
* Organized as 2M x16
* Single Voltage Read and Write Operations
* 2.7-3.6V
* Superior Reliability
* Endurance: 100,000 Cycles (Typical)
* Greater than 100 years Data Retention
* Low Power Consumption (typical values at 5 MHz)
* Active
