Datasheet4U.com - SY89297U

SY89297U Datasheet, delay equivalent, Microchip

Page 1 of SY89297U Page 2 of SY89297U Page 3 of SY89297U
  • Preview is limited to a maximum of three pages.

PDF File Details

Part number: SY89297U

Manufacturer: Microchip (https://www.microchip.com/)

File Size: 1.01MB

Download: 📄 Datasheet

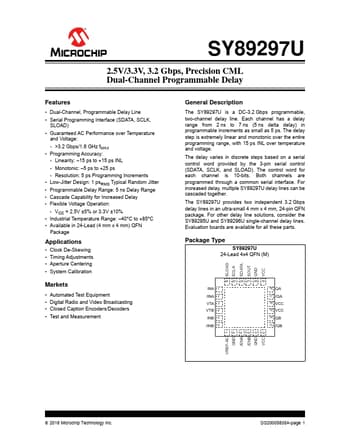

Description: Precision CML Dual-Channel Programmable Delay

📥 Download PDF (1.01MB) Datasheet Preview: SY89297U

PDF File Details

Part number: SY89297U

Manufacturer: Microchip (https://www.microchip.com/)

File Size: 1.01MB

Download: 📄 Datasheet

Description: Precision CML Dual-Channel Programmable Delay

SY89297U Features and benefits


* Dual-Channel, Programmable Delay Line
* Serial Programming Interface (SDATA, SCLK, SLOAD)
* Guaranteed AC Performance over Temperature and Voltage: - >3.2 G.

SY89297U Application


* Clock De-Skewing
* Timing Adjustments
* Aperture Centering
* System Calibration Markets
* Automate.

SY89297U Description

The SY89297U is a DC-3.2 Gbps programmable, two-channel delay line. Each channel has a delay range from 2 ns to 7 ns (5 ns delta delay) in programmable increments as small as 5 ps. The delay step is extremely linear and monotonic over the entire prog.
