TC4403 Datasheet, Driver, Microchip

TC4403 Features

  • Driver
  • Low Quiescent Current: 300µA Max
  • Capacitive Inputs With 300mV Hysteresis
  • Both Inputs Must Be Driven to Drive Load
  • Low Output Leakage
  • Hi

PDF File Details

Part number:

TC4403

Manufacturer:

Microchip ↗

File Size:

501.73kb

Download:

📄 Datasheet

Description:

Floating load driver. The TC4403 is a modified version of the TC4425 driver, intended to drive floating or isolated loads requiring high-current pulses. Th

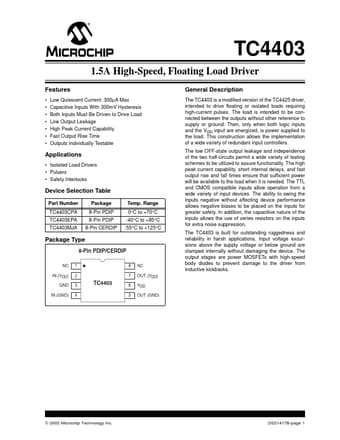

Datasheet Preview: TC4403 📥 Download PDF (501.73kb)
Page 2 of TC4403 Page 3 of TC4403

TC4403 Application

  • Applications
  • Isolated Load Drivers
  • Pulsers
  • Safety Interlocks Device Selection Table Part Number TC4403CPA TC4403EPA T
