TC7136

Low Power 3-1/2 Digit Analog-to-Digital Converter

TC7136 Features

* Fast Over Range Recovery, Ensured First Reading Accuracy

* Low Temperature Drift Internal Reference - TC7136: 70ppm/°C (Typ.) - TC7136A: 35ppm/°C (Typ.)

* Zero Reading with Zero Input

* Low Noise: 15µVP-P

* High Resolution: 0.05%

* Low Input Leakage

TC7136 General Description

The TC7136 and TC7136A are low power, 3-1/2 digit with liquid crystal display (LCD) drivers and analog-todigital converters. These devices incorporate an "integrator output zero" phase, which enables over range recovery. The performance of existing TC7126, TC7126A and ICL7126 based systems may be up.

TC7136 Datasheet (534.67 KB)

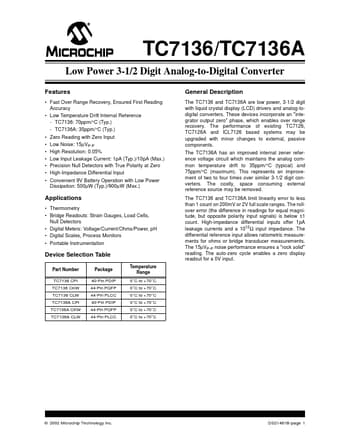

Preview of TC7136 PDF
