25C080 - 8K SPI Bus Serial EEPROM

MicrochipTechnology

📥 Download Datasheet

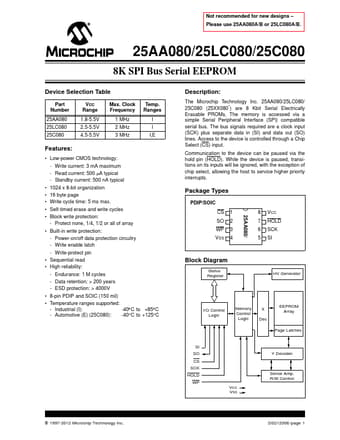

25C080 Datasheet Preview — Preview of 25C080 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 25C080
Manufacturer: Microchip ↗Technology
File Size: 190.85 KB
Datasheet: 25C080_MicrochipTechnology.pdf
Description: 8K SPI Bus Serial EEPROM

25C080 Product details

Description

The Microchip Technology Inc. ) are 8 Kbit Serial Electrically Erasable PROMs.

Features

Low-power CMOS technology: - Write current: 3 mA maximum - Read current: 500 A typical - Standby current: 500 nA typical.
1024 x 8-bit organization.
16 byte page.
Write cycle time: 5 ms max.
Self-timed erase and write cycles.
Block write protection: - Protect none, 1/4, 1/2 or all of array.
Built-in write protection: - Power-on/off data protection circuitry - Write enable latch - Write-protect pin.
Sequent.
