MT29F1G08ABAEAWP-IT - NAND Flash Memory

Description

9 Signal Descriptions and Assignments

.

.

.

Features

  • NAND Flash Memory MT29F1G08ABAEAWP, MT29F1G08ABAEAH4, MT29F1G08ABBEAH4 MT29F1G16ABBEAH4, MT29F1G08ABBEAHC, MT29F1G16ABBEAHC Features.
  • Open NAND Flash Interface (ONFI) 1.0-compliant1.
  • Single-level cell (SLC) technology.
  • Organization.
  • Page size x8: 2112 bytes (2048 + 64 bytes).
  • Page size x16: 1056 words (1024 + 32 words).
  • Block size: 64 pages (128K + 4K bytes).
  • Device size: 1Gb: 1024 blocks.
  • Asynchronous I/O performance.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MT29F1GxxABB 1Gb NAND Flash Memory Micron
MT29F128G08AJAAA NAND Flash Memory Micron
MT29F128G08AKAAA NAND Flash Memory Micron
MT29F128G08AKCAB NAND Flash Memory Micron
MT29F128G08AMAAA NAND Flash Memory Micron

Other Datasheets by Micron Technology

Part Number Description
MT29F1G08ABAEAWP NAND Flash Memory
MT29F1G08ABAEAH4 NAND Flash Memory
MT29F1G08ABAEAH4-IT NAND Flash Memory
MT29F1G08ABADAH4 NAND Flash Memory
MT29F1G08ABADAWP NAND Flash Memory

Full PDF Text Transcription

Click to expand full text

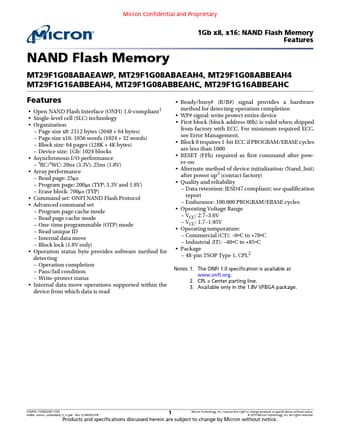

Micron Confidential and Proprietary 1Gb x8, x16: NAND Flash Memory Features NAND Flash Memory MT29F1G08ABAEAWP, MT29F1G08ABAEAH4, MT29F1G08ABBEAH4 MT29F1G16ABBEAH4, MT29F1G08ABBEAHC, MT29F1G16ABBEAHC Features • Open NAND Flash Interface (ONFI) 1.0-compliant1 • Single-level cell (SLC) technology • Organization – Page size x8: 2112 bytes (2048 + 64 bytes) – Page size x16: 1056 words (1024 + 32 words) – Block size: 64 pages (128K + 4K bytes) – Device size: 1Gb: 1024 blocks • Asynchronous I/O performance – tRC/tWC: 20ns (3.3V), 25ns (1.8V) • Array performance – Read page: 25µs – Program page: 200µs (TYP, 3.3V and 1.
