MT58L512Y36D, MT58L1MY18D Datasheet - Micron Technology

MT58L512Y36D, MT58L1MY18D, (MT58xxxx) 16Mb SYNCBURST SRAM

ADVANCE 16Mb: 1 MEG x 18, 512K x 32/36 PIPELINED, DCD SYNCBURST SRAM 16Mb SYNCBURST™ SRAM .
The Micron® SyncBurst™ SRAM family employs highspeed, low-power CMOS designs that are fabricated using an advanced CMOS process.

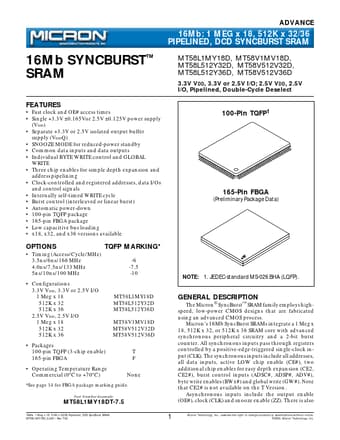

datasheet Preview Page 1 from Datasheet4u.com

MT58L1MY18D_MicronTechnology.pdf

MT58L512Y36D Datasheet Preview — This datasheet PDF includes multiple part numbers: MT58L512Y36D, MT58L1MY18D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MT58L512Y36D, MT58L1MY18D

Manufacturer:

Micron Technology

File Size:

526.57 KB

Description:

(MT58xxxx) 16Mb SYNCBURST SRAM

Note:

This datasheet PDF includes multiple part numbers: MT58L512Y36D, MT58L1MY18D.
Please refer to the document for exact specifications by model.

Features

* Fast clock and OE# access times
* Single +3.3V ±0.165Vor 2.5V ±0.125V power supply (VDD)
* Separate +3.3V or 2.5V isolated output buffer supply (VDDQ)
* SNOOZE MODE for reduced-power standby
* Common data inputs and data outputs
* Individual BYTE WRI

Applications

* Please refer to the Micron Web site (www. micronsemi. com/en/products/sram/) for the latest data sheet. TQFP PIN ASSIGNMENT TABLE PIN # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 x32/x36 NC/DQPc1 DQc DQc VDDQ VSS NC DQc NC DQc DQb DQc DQb DQc VSS VDDQ DQb DQc DQb DQc NC VDD NC
