M39L0R8090U3ZE6F, M39L0R7070U3ZE6E - NOR Flash

Name: M39L0R8090U3ZE6F
SKU: M39L0R8090U3ZE6F-1243649

Micron

The M39L0R8090U3ZE6F by Micron is a NOR Flash. Below is the official datasheet preview.

Datasheet Details

Part number	M39L0R8090U3ZE6F, M39L0R7070U3ZE6E
Manufacturer	Micron
File Size	308.35 KB
Description	NOR Flash
Datasheet	M39L0R7070U3ZE6E-Micron.pdf
Note	This datasheet PDF includes multiple part numbers: M39L0R8090U3ZE6F, M39L0R7070U3ZE6E. Please refer to the document for exact specifications by model.

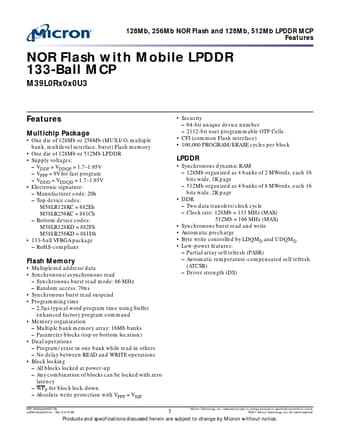

Additional preview pages of the M39L0R8090U3ZE6F datasheet.

NOR Flash with Mobile LPDDR 133-Ball MCP M39L0Rx0x0U3 Features Multichip Package.
One die of 128Mb or 256Mb (MUX I/O, multiple bank, multilevel interface, burst) Flash memory.
One die of 128Mb or 512Mb LPDDR.
Supply voltages:.
VDDF = VDDQF = 1.7.
1.95V.
VPPF = 9V for fast program.
VDDD = VDDQD = 1.7.
1.95V.
Electronic signature:.
Manufacturer code: 20h.
Top device codes: M58LR128KC = 882Eh M58LR256KC.
