MT29F32G08ABAAA - NAND Flash Memory

Micron

📥 Download Datasheet

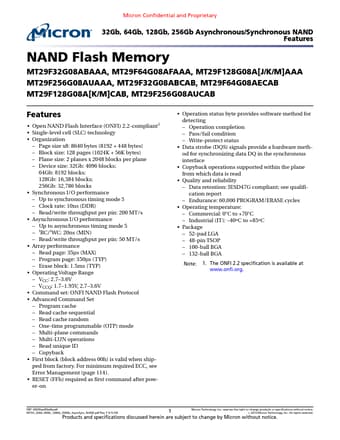

MT29F32G08ABAAA Datasheet Preview — Preview of MT29F32G08ABAAA PDF

Datasheet Details

Part number	MT29F32G08ABAAA
Manufacturer	Micron
File Size	3.14 MB
Description	NAND Flash Memory
Datasheet	MT29F32G08ABAAA-Micron.pdf

MT29F32G08ABAAA Product details

Description

9 Asynchronous and Synchronous Signal Descriptions 9 Signal Assignments 11 Package Dimensions 15 Architecture 23 Device and Array Organization 24 Bus Operation Asynchronous Interface 32 Asynchronous Enable/Standby 32 Asynchronous Bus Idle 32 Asynchronous Commands 33 Asynchronous Addresses 34 Asynchronous Data Input 35 Asynchronous Data Output 36 Write Protect 37 Ready/Busy# 37 Bus Operation Synchronous Interface 42 Synchronous Enable/Standby 43 Synchronous Bu

Features

NAND Flash Memory MT29F32G08ABAAA, MT29F64G08AFAAA, MT29F128G08A[J/K/M]AAA MT29F256G08AUAAA, MT29F32G08ABCAB, MT29F64G08AECAB MT29F128G08A[K/M]CAB, MT29F256G08AUCAB Features.
Open NAND Flash Interface (ONFI) 2.2-compliant1.
Single-level cell (SLC) technology.
Organization.
Page size x8: 8640 bytes (8192 + 448 bytes).
Block size: 128 pages (1024K + 56K bytes).
Plane size: 2 planes x 2048 blocks per plane.
Device size: 32Gb: 4096 bloc.
