MT29F32G08CBABA - (MT29Fxxxxxxxx) NAND Flash Memory

Micron

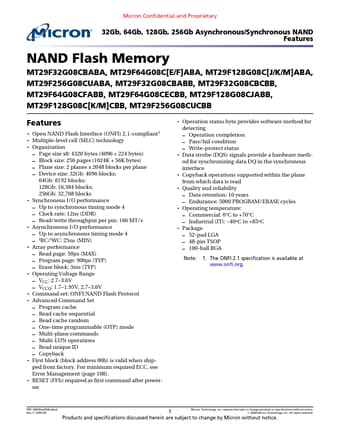

MT29F32G08CBABA Datasheet Preview — Preview of MT29F32G08CBABA PDF

Datasheet Details

Part number	MT29F32G08CBABA
Manufacturer	Micron
File Size	3.22 MB
Description	(MT29Fxxxxxxxx) NAND Flash Memory
Datasheet	MT29F32G08CBABA_Micron.pdf

MT29F32G08CBABA Product details

Description

9 Asynchronous and Synchronous Signal Descriptions 9 Signal Assignments 11 Package Dimensions 14 Architecture 19 Device and Array Organization 20 Bus Operation Asynchronous Interface 27 Asynchronous Enable/Standby 27 Asynchronous Bus Idle 27 Asynchronous Commands 28 Asynchronous Addresses 29 Asynchronous Data Input 30 Asynchronous Data Output 31 Write Protect 32 Ready/Busy# 32 Bus Operation Synchronous Interface 37 Synchronous Enable/Standby 38 Synchronous Bu

Features

NAND Flash Memory MT29F32G08CBABA, MT29F64G08C[E/F]ABA, MT29F128G08C[J/K/M]ABA, MT29F256G08CUABA, MT29F32G08CBABB, MT29F32G08CBCBB, MT29F64G08CFABB, MT29F64G08CECBB, MT29F128G08CJABB, MT29F128G08C[K/M]CBB, MT29F256G08CUCBB Features.
Open NAND Flash Interface (ONFI) 2.1-compliant1.
Multiple-level cell (MLC) technology.
Organization.
Page size x8: 4320 bytes (4096 + 224 bytes).
Block size: 256 pages (1024K + 56K bytes).
Plane size: 2 planes x.
