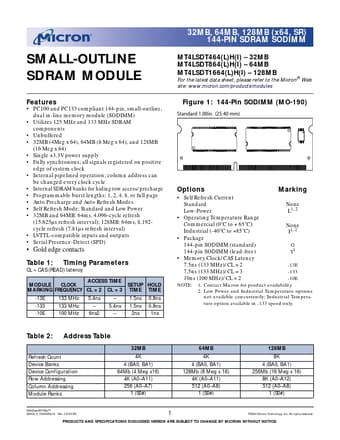

MT4LSDT1664H
Features
- PC100 and PC133 pliant 144-pin, small-outline, dual in-line memory module (SODIMM)
- Utilizes 125 MHz and 133 MHz SDRAM ponents
- Unbuffered
- 32MB (4Meg x 64), 64MB (8 Meg x 64), and 128MB
(16 Meg x 64)
- Single +3.3V power supply
- Fully synchronous; all signals registered on positive edge of system clock
- Internal pipelined operation; column address can be changed every clock cycle
- Internal SDRAM banks for hiding row access/precharge
- Programmable burst lengths: 1, 2, 4, 8, or full page
- Auto Precharge and Auto Refresh Modes
- Self Refresh Mode: Standard and Low Power
- 32MB and 64MB: 64ms, 4,096-cycle refresh
(15.625µs refresh interval); 128MB: 64ms, 8,192cycle refresh (7.81µs refresh interval)
- LVTTL-patible inputs and outputs
- Serial Presence-Detect (SPD)
- Gold edge contacts
Table 1: Timing Parameters
CL = CAS (READ) latency
ACCESS TIME
MODULE CLOCK
SETUP HOLD
MARKING FREQUENCY CL = 2...
