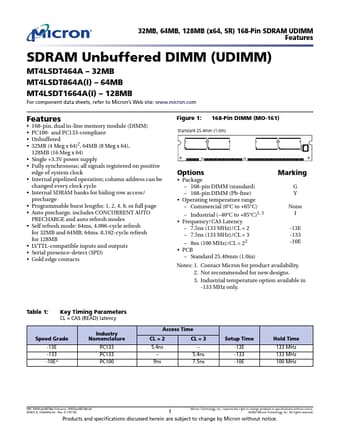

MT4LSDT464A
Features
SDRAM Unbuffered DIMM (UDIMM)
- 32MB MT4LSDT864A(I)
- 64MB MT4LSDT1664A(I)
- 128MB
For ponent data sheets, refer to Micron’s Web site: .micron.
Features
- 168-pin, dual in-line memory module (DIMM)
- PC100- and PC133-pliant
- Unbuffered
- 32MB (4 Meg x 64)2, 64MB (8 Meg x 64),
128MB (16 Meg x 64)
- Single +3.3V power supply
- Fully synchronous; all signals registered on positive edge of system clock
- Internal pipelined operation; column address can be changed every clock cycle
- Internal SDRAM banks for hiding row access/ precharge
- Programmable burst lengths: 1, 2, 4, 8, or full page
- Auto precharge, includes CONCURRENT AUTO
PRECHARGE and auto refresh modes
- Self refresh mode: 64ms, 4,096-cycle refresh for 32MB and 64MB; 64ms, 8,192-cycle refresh for 128MB
- LVTTL-patible inputs and outputs
- Serial presence-detect (SPD)
- Gold edge contacts
Figure 1:...
