Datasheet Details
Part number:
MTFDDAK240MAV, MTFDDAK120MAV
Manufacturer:
Micron
File Size:
409.44 KB
Description:
M500 2.5-inch sata nand flash ssd.
Note:
This datasheet PDF includes multiple part numbers: MTFDDAK240MAV, MTFDDAK120MAV.
Please refer to the document for exact specifications by model.

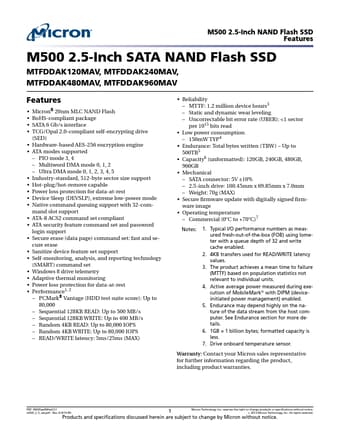

MTFDDAK240MAV, MTFDDAK120MAV, M500 2.5-Inch SATA NAND Flash SSD
General Description Micron’s solid state drive (SSD) uses a single-chip controller with a SATA interface on the system side and 8-channels of Micron NAND Flash internally.
Packaged in an HDD replacement enclosure, the SSD integrates easily in existing storage infrastructures.
The SSD is designed to
MTFDDAK240MAV Features
* M500 2.5-Inch SATA NAND Flash SSD MTFDDAK120MAV, MTFDDAK240MAV, MTFDDAK480MAV, MTFDDAK960MAV Features
* Micron® 20nm MLC NAND Flash
* RoHS-compliant package
* SATA 6 Gb/s interface
* TCG/Opal 2.0-compliant self-encrypting drive (SED)
* Hardware-based AES-256
