PZ28F032M29EWXX - Parallel NOR Flash Embedded Memory

Micron

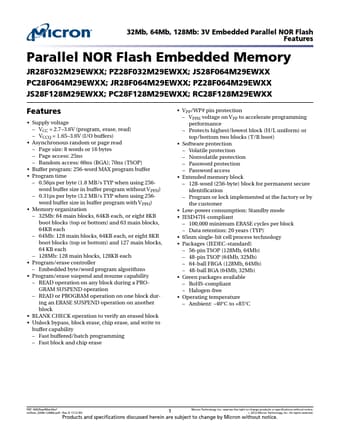

PZ28F032M29EWXX Datasheet Preview — Preview of PZ28F032M29EWXX PDF

Datasheet Details

Part number	PZ28F032M29EWXX
Manufacturer	Micron
File Size	1.04 MB
Description	Parallel NOR Flash Embedded Memory
Datasheet	PZ28F032M29EWXX-Micron.pdf

PZ28F032M29EWXX Product details

Description

8 Signal Assignments 9 Signal Descriptions 13 Memory Organization 14 Memory Configuration 14 Memory Map 32Mb 15 Memory Map 64Mb 17 Memory Map 128Mb 19 Bus Operations 20 Read 20 Write 20 Standby 20 Output Disable 21 Reset 21 Registers 22 Status Register 22 Lock Register 27 Standard Command Definitions Address-Data Cycles 30 READ and AUTO SELECT Operations 33 READ/RESET Command 33 READ CFI Command 33 AUTO SELECT Command 33 Bypass Operat

Features

Parallel NOR Flash Embedded Memory JR28F032M29EWXX; PZ28F032M29EWXX; JS28F064M29EWXX PC28F064M29EWXX; JR28F064M29EWXX; PZ28F064M29EWXX JS28F128M29EWXX; PC28F128M29EWXX; RC28F128M29EWXX Features.
Supply voltage.
VCC = 2.7.
3.6V (program, erase, read).
VCCQ = 1.65.
3.6V (I/O buffers).
Asynchronous random or page read.
Page size: 8 words or 16 bytes.
Page access: 25ns.
Random access: 60ns (BGA); 70ns (TSOP).
Buff.
