VPC3231D, VPC3230D - Comb Filter Video Processor

Micronas

The VPC3231D by Micronas is a Comb Filter Video Processor. Below is the official datasheet preview.

📥 Download Datasheet

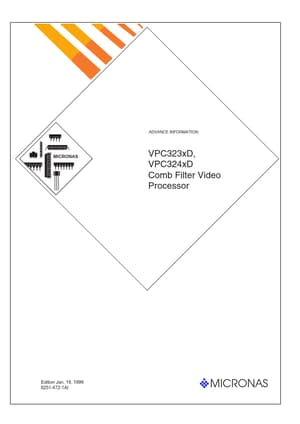

VPC3231D Comb Filter Video Processor by Micronas - Datasheet Preview — Official preview page of the **VPC3231D** Comb Filter Video Processor datasheet (Micronas).

Datasheet Details

Part number	VPC3231D, VPC3230D
Manufacturer	Micronas
File Size	796.11 KB
Description	Comb Filter Video Processor
Datasheet	VPC3230D-Micronas.pdf
Note	This datasheet PDF includes multiple part numbers: VPC3231D, VPC3230D. Please refer to the document for exact specifications by model.
Additional preview pages of the VPC3231D datasheet.

VPC3231D Product details

Description

Analog Video Front-End Input Selector Clamping Automatic Gain Control Analog-to-Digital Converters Digitally Controlled Clock Oscillator Analog Video Output Adaptive Comb Filter Color Decoder IF-Compensation Demodulator Chrominance Filter Frequency Demodulator Burst Detection / Saturation Control Color Killer Operation Automatic standard recognition PAL Compensation/1-H Comb Filter Luminance Notch Filter Skew Filtering Component Interface Processor CIP Component Analogue Front End Matrix Compone

Features

of the VPC 323xD/324xD are.
high-performance adaptive 4H comb filter Y/C separator with adjustable vertical peaking.
multi-standard color decoder PAL/NTSC/SECAM including all substandards.
four CVBS, one S-VHS input, one CVBS output.
two RGB/YCrCb component inputs, one Fast Blank (FB) input.
integrated high-quality A/D converters and associated clamp and AGC circuits.
multi-standard sync processing.
linear horizontal scaling (0.25 4.
