MW415 Datasheet - Micronetics Wireless

MW415 Oscillators

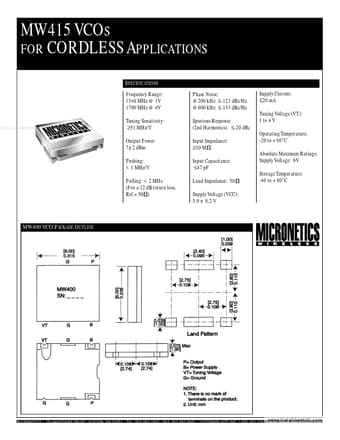

MW415 VCOS FOR CORDLESS APPLICATIONS SPECIFICATIONS Frequency Range: 1548 MHz @ 1V 1700 MHz @ 4V Tuning Sensitivity: ≥51 MHz/V Output Power: 7±2 dBm Pushing: < 1 MHz/V Pulling: < 2 MHz (For a 12 dB return loss, Ref.=50 ) Phase Noise: @200 kHz: ≤-123 dBc/Hz @600 kHz: ≤-133 dBc/Hz Spurious Response (2nd Harmonics): ≤-20 dBc Input Impedance: ≥10 M Input Capacitance: ≤47 pF Load Impedance: 50 Supply Voltage (VCC): 5.0 ± 0.2 V Supply Current: ≤20 mA Tuning Voltage (VT): 1 to 4 V Operating Temperat.

MW415_MicroneticsWireless.pdf

Preview of MW415 PDF

Datasheet Details

Part number:

MW415

Manufacturer:

Micronetics Wireless

File Size:

61.42 KB

Description:

Oscillators.
