53246 - RADIATION TOLERANT 40VDC - 2A SOLID STATE RELAY

Datasheet Summary

Description

The 53246 is a SPST, radiation tolerant, DC solid-state relay (SSR) designed for military and space applications.

This light-weight device is resistant to damage from severe shock and vibration, and is immune to contact related problems inherent in electro-mechanical relays.

Micropac Industries

📥 Download Datasheet

Datasheet Details

Part number	53246
Manufacturer	Micropac Industries
File Size	153.62 KB
Description	RADIATION TOLERANT 40VDC - 2A SOLID STATE RELAY
Datasheet	53246 Datasheet

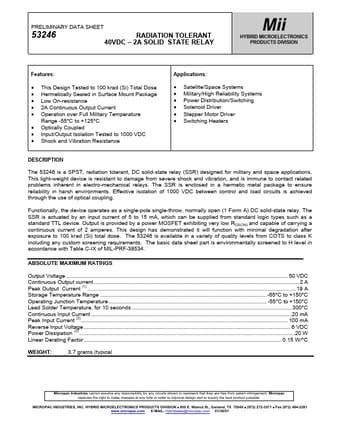

Additional preview pages of the 53246 datasheet.

📁 Similar Datasheet

53200C - 10A Current Sensing Transformers (muRata)
53256 - MSM53256 (ETC)
53274 - Solid State Relay SPST (Mii)

Other Datasheets by Micropac Industries

53248 - 28 VDC SOLID STATE POWER CONTROLLER
53248-102 - 28 VDC SOLID STATE POWER CONTROLLER
53200 - SPDT SOLID-STATE RELAYS
53203 - SPDT SOLID-STATE RELAYS
53204 - SPDT SOLID-STATE RELAYS
53209 - SPDT SOLID-STATE RELAYS High Power AC/DC Switching
53210 - SPDT SOLID-STATE RELAYS High Power AC/DC Switching
53211 - SPDT SOLID-STATE RELAYS High Power AC/DC Switching

Full PDF Text Transcription

Click to expand full text

PRELIMINARY DATA SHEET 53246 RADIATION TOLERANT 40VDC – 2A SOLID STATE RELAY Mii HYBRID MICROELECTRONICS PRODUCTS DIVISION Features: Applications: • • • • • • • • This Design Tested to 100 krad (Si) Total Dose Hermetically Sealed in Surface Mount Package Low On-resistance 2A Continuous Output Current Operation over Full Military Temperature Range -55°C to +125°C Optically Coupled Input/Output Isolation Tested to 1000 VDC Shock and Vibration Resistance • • • • • • Satellite/Space Systems Military/High Reliability Systems Power Distribution/Switching Solenoid Driver Stepper Motor Driver Switching Heaters DESCRIPTION The 53246 is a SPST, radiation tolerant, DC solid-state relay (SSR) designed for military and space applications.
