61056 - PHOTODARLINGTON PILL PACK

This page provides the datasheet information for the 61056, a member of the 610 PHOTODARLINGTON PILL PACK family.

Datasheet Summary

Description

The 61056 is an N-P-N Planar Silicon Photodarlington Transistor in a package designed to be mounted in a double-clad printed circuit board and used in low light level applications.

It is available in a range of sensitivities and is lensed for minimum response to stray light.

Features

  • Hermetically sealed High sensitivity Small package Suitable for high-density pc board mounting Spectrally matched to the 62000 series LED.

📥 Download Datasheet

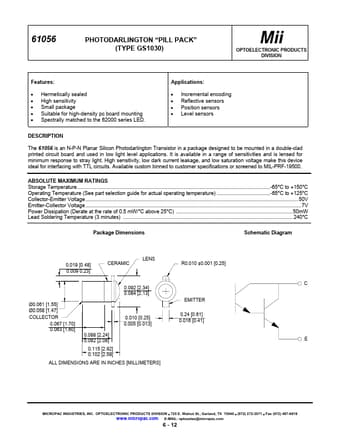

Datasheet preview – 61056

Datasheet Details

Part number 61056
Manufacturer Micropac Industries
File Size 86.71 KB
Description PHOTODARLINGTON PILL PACK
Datasheet download datasheet 61056 Datasheet
Additional preview pages of the 61056 datasheet.

📁 Similar Datasheet

Other Datasheets by Micropac Industries
  • 61053 - SILICON PHOTOTRANSISTOR PIGTAIL
  • 61055 - SILICON PHOTOTRANSISTOR PILL PACK
  • 61058 - SILICON PHOTOTRANSISTOR
  • 61010 - PHOTODARLINGTON PIGTAIL
  • 61048 - SILICON PHOTOTRANSISTOR
  • 61060 - PHOTODIODE PIGTAIL
  • 61063 - PHOTODIODE PILL PACK
  • 61082 - FIBER OPTIC PIN PHOTODIODE

Full PDF Text Transcription

Click to expand full text
61056 PHOTODARLINGTON “PILL PACK” (TYPE GS1030) Mii OPTOELECTRONIC PRODUCTS DIVISION Features: • • • • • Hermetically sealed High sensitivity Small package Suitable for high-density pc board mounting Spectrally matched to the 62000 series LED. Applications: • • • • Incremental encoding Reflective sensors Position sensors Level sensors DESCRIPTION The 61056 is an N-P-N Planar Silicon Photodarlington Transistor in a package designed to be mounted in a double-clad printed circuit board and used in low light level applications. It is available in a range of sensitivities and is lensed for minimum response to stray light. High sensitivity, low dark current leakage, and low saturation voltage make this device ideal for interfacing with TTL circuits.
