JANTX4N48A Datasheet - Micropac Industries

JAN/ JANTX/ JANTXV/ SINGLE CHANNEL OPTOCOUPLERS

JANTX4N48A Features

* High Reliability Base lead provided for conventional transistor biasing Rugged package High gain, high voltage transistor +1kV electrical isolation Applications:

* Eliminate ground loops Level shiftin

JANTX4N48A General Description

Gallium Aluminum Arsenide (GaAlAs) infrared LED and a high gain N-P-N silicon phototransistor packaged in a hermetically sealed TO-5 metal can. The 4N47A, 4N48A and 4N49A’s can be tested to customer specifications, as well as to MIL-PRF19500 JAN, JANTX, JANTXV and JANS quality levels. *ABSOLUTE.

JANTX4N48A Datasheet (88.87 KB)

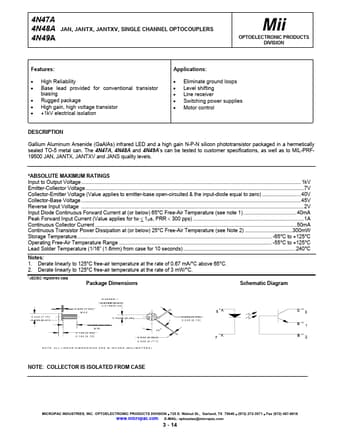

Preview of JANTX4N48A PDF

Datasheet Details

Part number:

JANTX4N48A

Manufacturer:

Micropac Industries

File Size:

88.87 KB

Description:

Jan/ jantx/ jantxv/ single channel optocouplers.
