JANTXV4N22A

JAN/ JANTX/ JANTXV/ SINGLE CHANNEL OPTOCOUPLERS

JANTXV4N22A Features

* Collector is electrically isolated from the case. Overall current gain1.5 typical (4N24A) Base lead provided for conventional transistor biasing Rugged package High gain, high voltage transistor +1kV electrical isolation Applications:

JANTXV4N22A General Description

Gallium Aluminum Arsenide (GaAlAs) infrared LED and a high gain N-P-N silicon phototransistor packaged in a hermetically sealed metal case. The 4N22A, 4N23A and 4N24A can be tested to customer specifications, as well as to MIL-PRF-19500 JAN, JANS, JANTX, and JANTXV quality levels.
*ABSOLUTE MAX.

JANTXV4N22A Datasheet (88.17 KB)

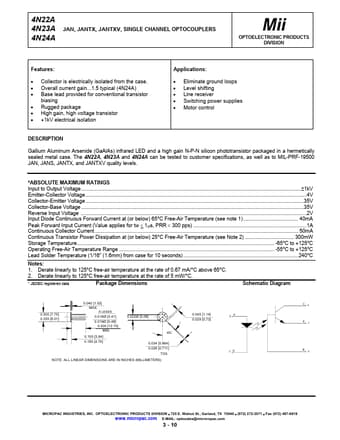

Preview of JANTXV4N22A PDF

Datasheet Details

Part number:

JANTXV4N22A

Manufacturer:

Micropac Industries

File Size:

88.17 KB

Description:

Jan/ jantx/ jantxv/ single channel optocouplers.
