1N3001B

ZENER DIODES

1N3001B Features

* JEDEC registered 1N2970 thru 1N3015B and 1N3993 thru 1N4000A Internal solder bond construction Hermetically sealed (welded) Zener Voltage 3.9V to 200V. Also available in JAN, JANTX, and JANTXV qualifications per MIL-PRF-19500/124 by adding the JAN, J

1N3001B General Description

These high power 10 W Zener diodes represented by the JEDEC registered 1N2970 thru 1N3015B and 1N3993 thru 1N4000A series provide voltage regulation in a selection over a 3.9 V to 200 V broad range of voltages. They may be operated up to 10 W with adequate mounting and heat sinking with their low th.

1N3001B Datasheet (215.72 KB)

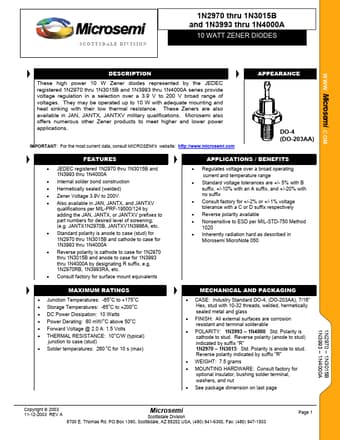

Preview of 1N3001B PDF

Datasheet Details

Part number:

1N3001B

Manufacturer:

Microsemi ↗ Corporation

File Size:

215.72 KB

Description:

Zener diodes.
