1N4581AUR-1 Datasheet - Microsemi Corporation

1N4581AUR-1 (1N4565AUR-1 - 1N4584AUR-1) TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

1N4565AUR-1 THRU 1N4584AUR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/452 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES LEADLESS PACKAGE FOR SURFACE MOUNT LOW CURRENT OPERATING RANGE: 0.5 TO 4.0 mA METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C lR = 2µA @ 25°C & .

1N4581AUR-1 Datasheet (262.40 KB)

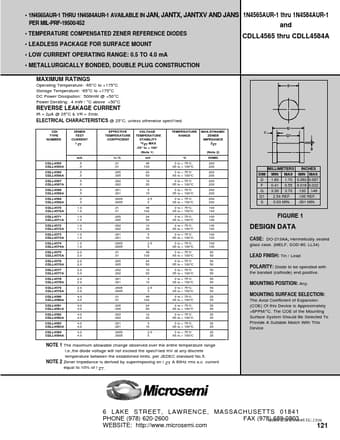

Preview of 1N4581AUR-1 PDF

Datasheet Details

Part number:

1N4581AUR-1

Manufacturer:

Microsemi ↗ Corporation

File Size:

262.40 KB

Description:

(1n4565aur-1 - 1n4584aur-1) temperature compensated zener reference diodes.
