1N5809US, 1N5807US ULTRA FAST RECOVERY GLASS RECTIFIERS

1N5809US Description

1N5807US, 1N5809US, 1N5811US and URS Available on commercial versions VOID-LESS HERMETICALLY SEALED ULTRAFAST RECOVERY GLASS RECTIFIERS Qualified pe.
This “Ultrafast Recovery” rectifier diode series is military qualified and is ideal for high-reliability applications where a failure cannot be toler.

1N5809US Features

* JEDEC registered surface mount equivalent of 1N5807, 1N5809, 1N5811 series.
* Void-less hermetically sealed glass package.
* Quadruple-layer passivation.
* Extremely robust construction.
* Internal “Category 1” metallurgical bonds.
* JAN, JANTX, JAN

1N5809US Applications

* where a failure cannot be tolerated. The industry-recognized 6.0 amp rated rectifiers with working peak reverse voltages from 50 to 150 volts are hermetically sealed with void-less glass construction using an internal “Category 1” metallurgical bond. These devices are available in both surface mount

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5809US, 1N5807US. Please refer to the document for exact specifications by model.

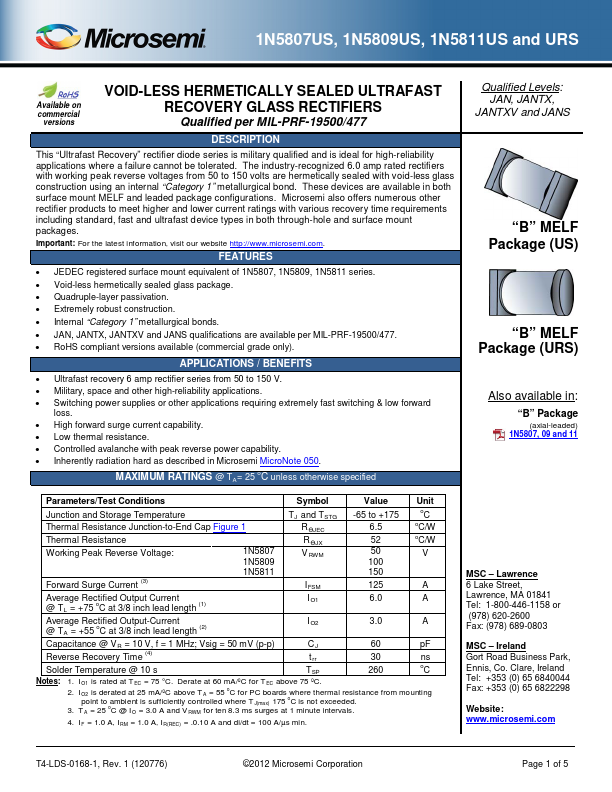

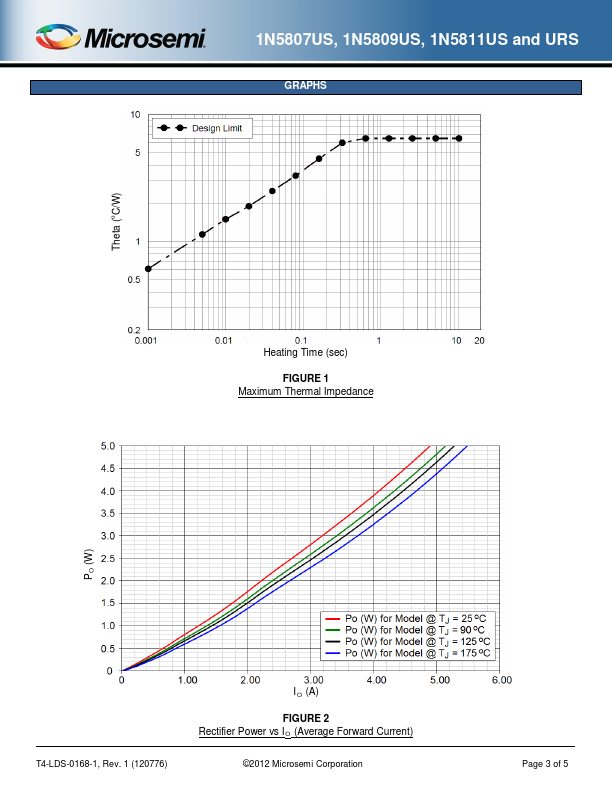

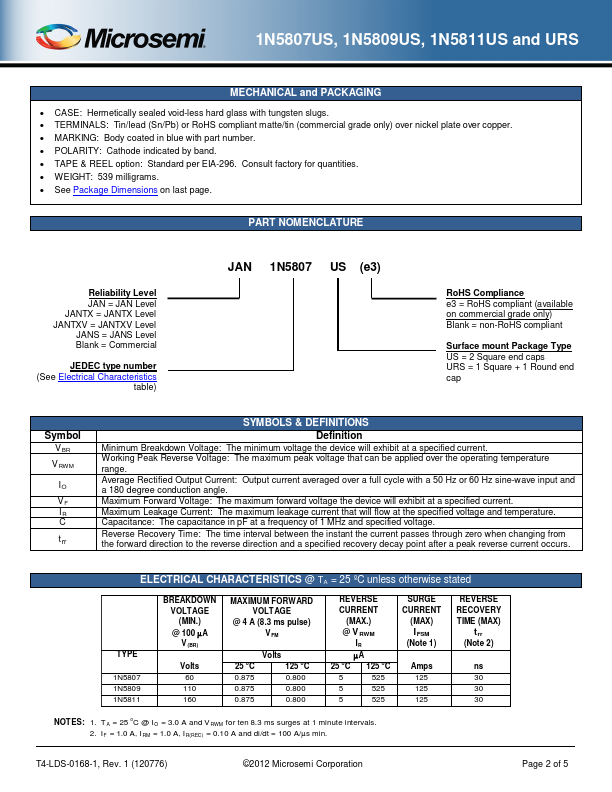

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5809US, 1N5807US
Manufacturer
Microsemi ↗ Corporation
File Size
259.57 KB
Datasheet
1N5807US_MicrosemiCorporation.pdf
Description
ULTRA FAST RECOVERY GLASS RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: 1N5809US, 1N5807US.
Please refer to the document for exact specifications by model.
