1N5953BG, 1N5913 Datasheet - Microsemi Corporation

1N5953BG Axial-Leaded 1.5 Watt Glass Zener Diodes

The 1N5913BG-5956BG series of 1.5 watt Zeners provides voltage regulation in a selection from 3.3 to 200 volts with a variety of tolerances available. They are also available in various military equivalent screening levels for high reliability. These glass encapsulated Zeners with a G suffix provide.

1N5953BG Features

* JEDEC registered 1N5913B TO 1N5956B number series.

* Zener voltage available 3.3 V to 200 V.

* Voltage tolerances of 10%, 5%, 2% and 1% are available.

* Screening in reference to MIL-PRF-19500 is available. (See part nomenclature for all available options.)

1N5913-BG.pdf

This datasheet PDF includes multiple part numbers: 1N5953BG, 1N5913. Please refer to the document for exact specifications by model.

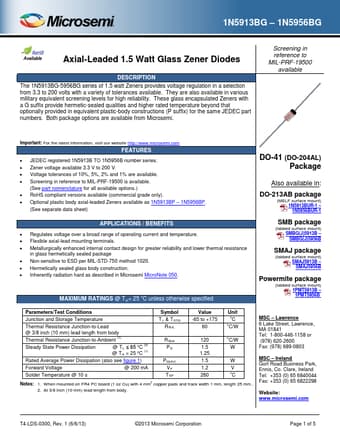

1N5953BG Datasheet Preview Page 2 1N5953BG Datasheet Preview Page 3

Datasheet Details

Part number:

1N5953BG, 1N5913

Manufacturer:

Microsemi ↗ Corporation

File Size:

336.03 KB

Description:

Axial-leaded 1.5 watt glass zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N5953BG, 1N5913.
Please refer to the document for exact specifications by model.
