2N2150 Datasheet - Microsemi Corporation

2N2150 NPN POWER SILICON TRANSISTOR

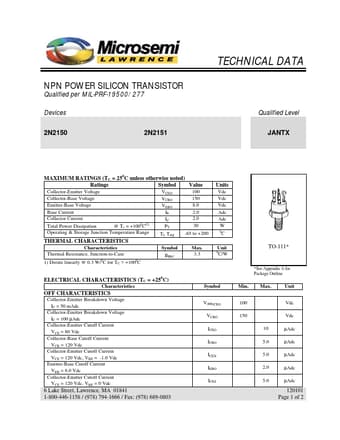

TECHNICAL DATA NPN POWER SILICON TRANSISTOR Qualified per MIL-PRF-19500/277 Devices 2N2150 2N2151 Qualified Level JANTX MAXIMUM RATINGS (TC = 250C unless otherwise noted) Ratings Symbol Value Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Base Current Collector Current Total Power Dissipation @ Tc = +1000C(1) Operating & Storage Junction Temperature Range VCEO VCBO VEBO IB IC PT TJ, Tstg Symbol RθJC 100 150 8.0 2.0 2.0 30 -65 to +200 Max. 3.3 Units Vdc Vdc Vdc Adc Adc W .

2N2150_MicrosemiCorporation.pdf

Preview of 2N2150 PDF
2N2150 Datasheet Preview Page 2

Datasheet Details

Part number:

2N2150

Manufacturer:

Microsemi ↗ Corporation

File Size:

65.65 KB

Description:

Npn power silicon transistor.
