3PMT1xA - (3PMT5.0A - 3PMT170A) POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor

Download the 3PMT1xA datasheet PDF. This datasheet also covers the 3PMT100A variant, as both devices belong to the same (3pmt5.0a - 3pmt170a) powermite low profile 1500 watt transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Description

These 1500 watt transient voltage suppressors offer power-handling capabilities only found in larger packages.

They are most often used for protecting against transients from inductive switching environments or induced secondary lightning effects as found in lower surge levels of IEC61000-4-5.

Features

  • include a full metallic bottom that eliminates the possibility of solder-flux entrapment during assembly. They also provide unique locking tab acting as an integral heat sink. With its very short terminations, parasitic inductance is minimized to reduce voltage overshoots during fast-rise-time transients.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (3PMT100A_MicrosemiCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 3PMT1xA
Manufacturer Microsemi (Microchip)
File Size 479.52 KB
Description (3PMT5.0A - 3PMT170A) POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor
Datasheet download datasheet 3PMT1xA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
3PMT100A (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor Microsemi
3PMT10A (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor Microsemi
3PMT110A (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor Microsemi
3PMT11A (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor Microsemi
3PMT120A (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor Microsemi

Other Datasheets by Microsemi (Microchip)

Part Number Description
3PMT100A (3PMT5.0A - 3PMT170A) POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor
3PMT2xA (3PMT5.0A - 3PMT170A) POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor
3PMT3xA (3PMT5.0A - 3PMT170A) POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor
3PMT4xA (3PMT5.0A - 3PMT170A) POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor
3PMT5.0A (3PMT5.0A - 3PMT170A) POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor

Full PDF Text Transcription

Click to expand full text

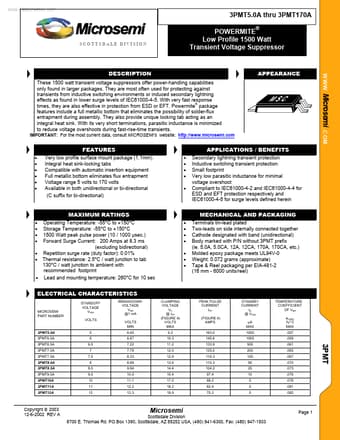

www.DataSheet4U.com 3PMT5.0A thru 3PMT170A POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor ® SCOTTSDALE DIVISION DESCRIPTION These 1500 watt transient voltage suppressors offer power-handling capabilities only found in larger packages. They are most often used for protecting against transients from inductive switching environments or induced secondary lightning effects as found in lower surge levels of IEC61000-4-5. With very fast response ® times, they are also effective in protection from ESD or EFT. Powermite package features include a full metallic bottom that eliminates the possibility of solder-flux entrapment during assembly. They also provide unique locking tab acting as an integral heat sink.
