3PMT7.5A

(3PMT5.0A - 3PMT170A) POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor

3PMT7.5A Features

* include a full metallic bottom that eliminates the possibility of solder-flux entrapment during assembly. They also provide unique locking tab acting as an integral heat sink. With its very short terminations, parasitic inductance is minimized to reduce voltage overshoots during fast-rise-time trans

3PMT7.5A General Description

These 1500 watt transient voltage suppressors offer power-handling capabilities only found in larger packages. They are most often used for protecting against transients from inductive switching environments or induced secondary lightning effects as found in lower surge levels of IEC61000-4-5. With .

3PMT7.5A Datasheet (479.52 KB)

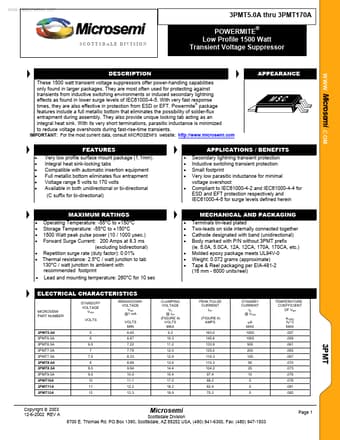

Preview of 3PMT7.5A PDF

Datasheet Details

Part number:

3PMT7.5A

Manufacturer:

Microsemi ↗ Corporation

File Size:

479.52 KB

Description:

(3pmt5.0a - 3pmt170a) powermite low profile 1500 watt transient voltage suppressor.
