APT9M100B N-Channel MOSFET

APT9M100B Description

APT9M100B APT9M100S 1000V, 9A, 1.50Ω Max N-Channel MOSFET Power MOS 8™ is a high speed, high voltage N-channel switch-mode power MOSFET.A proprietar.

APT9M100B Features

* Fast switching with low EMI/RFI
* Low RDS(on)
* Ultra low Crss for improved noise immunity
* Low gate charge
* Avalanche energy rated

APT9M100B Applications

* PFC and other boost converter
* Buck converter
* Two switch forward (asymmetrical bridge)
* Single switch forward
* Flyback
* Inverters www. DataSheet4U. com Absolute Maximum Ratings Symbol ID IDM VGS EAS IAR Parameter Continuous Drain Current @ TC =

📥 Download Datasheet

Preview of APT9M100B PDF

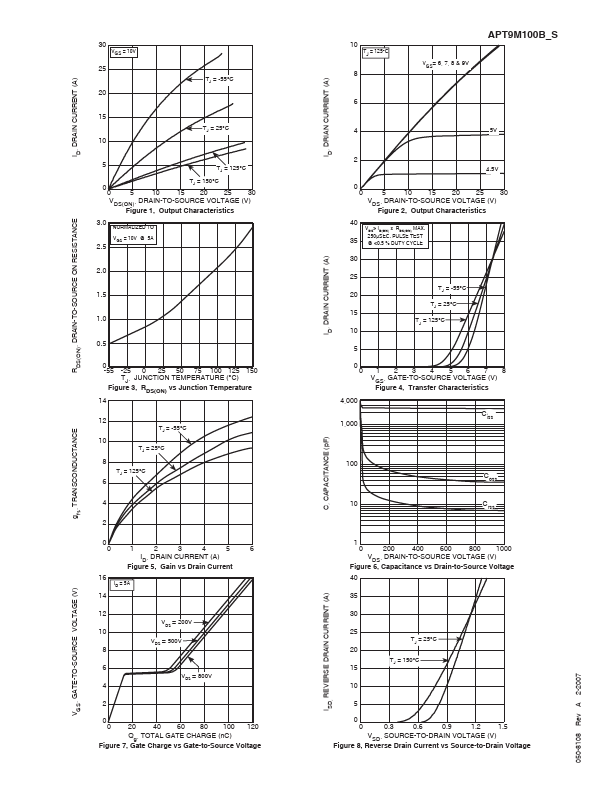

datasheet Preview Page 2 datasheet Preview Page 3
