CDLL827, CDLL821 Datasheet - Microsemi Corporation

CDLL827 - TEMPERATURE COMPENSATED ZENER DIODES

1N821UR-1, 1N823UR-1, 1N825UR-1, 1N827UR-1 AND 1N829UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/159 TEMPERATURE COMPENSATED ZENER DIODES LEADLESS PACKAGE FOR SURFACE MOUNT 6.2 AND 6.55 VOLT NOMINAL ZENER VOLTAGES METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N821UR-1 thru 1N829UR-1 and CDLL821 thru CDLL829A MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 5.

CDLL821_MicrosemiCorporation.pdf

This datasheet PDF includes multiple part numbers: CDLL827, CDLL821. Please refer to the document for exact specifications by model.

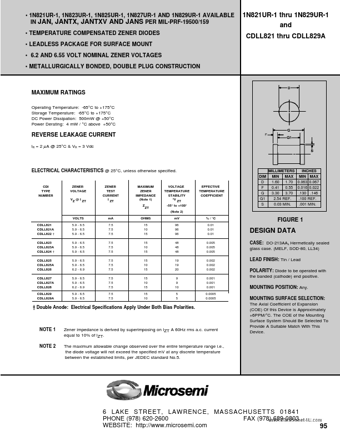

CDLL827 Datasheet Preview Page 2

Datasheet Details

Part number:

CDLL827, CDLL821

Manufacturer:

Microsemi ↗ Corporation

File Size:

359.28 KB

Description:

Temperature compensated zener diodes.

Note:

This datasheet PDF includes multiple part numbers: CDLL827, CDLL821.
Please refer to the document for exact specifications by model.
