JANTX1N5611 - POWER ZENER RECTIFIER

Product Overview

📥 Download Datasheet

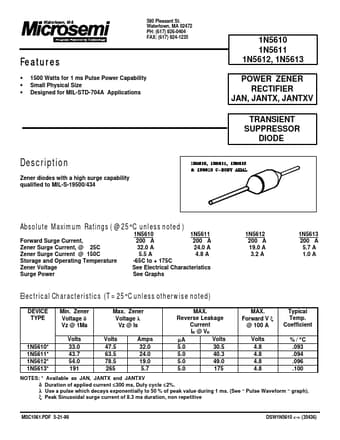

Datasheet preview – JANTX1N5611

Datasheet Details

Part number JANTX1N5611
Manufacturer Microsemi Corporation
File Size 136.02 KB
Description POWER ZENER RECTIFIER
Datasheet download datasheet JANTX1N5611 Datasheet
Note This datasheet PDF includes multiple part numbers: JANTX1N5611, JANTX1N561x.
Please refer to the document for exact specifications by model.
Additional preview pages of the JANTX1N5611 datasheet.

Product details

Description

Zener diodes with a high surge capability qualified to MIL-S-19500/434 Absolute Maximum Ratings ( @ 25°C unless noted ) Forward Surge Current, Zener Surge Current, @ 25C Zener Surge Current @ 150C Storage and Operating Temperature Zener Voltage Surge Power 1N5610 1N5611 200 A 200 A 32.0 A 24.0 A 5.5 A 4.8 A -65C to + 175C See Electrical Characteristics See Graphs 1N5612 200 A 19.0 A 3.2 A 1N5613 200 A 5.7 A 1.0 A Electrical Characteristics (T = 25°C unless otherwise noted) DEVICE TYPE Min.Zen
