LX2206 Dual Level Lithium Ion Battery Charger

LX2206 Description

www.DataSheet4U.com TM ® LX2206 Dual Level Lithium Ion Battery Charger P RODUCTION D ATA S HEET .
KEY FEATURES. Two Independent Programmable Charge Currents. Charging up to 1A. Charging from USB P.

LX2206 Features

* Two Independent Programmable Charge Currents
* 0.5% Float Voltage Tolerance
* Charging up to 1A.
* Charging from USB Port.
* USB Current Compliance
* Full Battery Indicator
* CC/CV w Thermal Feedback
* Battery Temperature Monitor
* Precision Charge Termination

LX2206 Applications

* The LX2206 can be used with a wall adapter or USB power source to charge a single cell Lithium Ion or Lithium Polymer battery. There are two logic selectable and programmable charge current levels which can be set from anywhere between 50mA to 1A. The termination current is 1/10 the charge level se

📥 Download Datasheet

Preview of LX2206 PDF

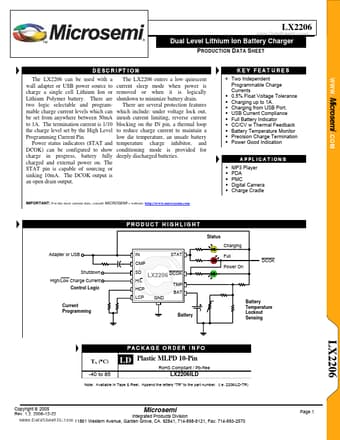

datasheet Preview Page 2 datasheet Preview Page 3
