LX8386-33IDD - 1.5 A LOW DROPOUT POSITIVE REGULATORS

This page provides the datasheet information for the LX8386-33IDD, a member of the LX8 1.5 A LOW DROPOUT POSITIVE REGULATORS family.

Datasheet Summary

Description

The LX8386/86A/86B series ICs are positive regulators designed to provide 1.5A output current.

These regulators yield higher efficiency than currently available devices with all internal circuitry designed to operate down to a 1V input-to-output differential.

Features

  • expected of voltage regulators: short circuit protection, safe operating area protection and automatic thermal shutdown if the device temperature rises above approximately 165°C. Use of an output capacitor is.

📥 Download Datasheet

Datasheet preview – LX8386-33IDD

Datasheet Details

Part number LX8386-33IDD
Manufacturer Microsemi Corporation
File Size 223.75 KB
Description 1.5 A LOW DROPOUT POSITIVE REGULATORS
Datasheet download datasheet LX8386-33IDD Datasheet
Additional preview pages of the LX8386-33IDD datasheet.

📁 Similar Datasheet

  • LX802 - SILICON GATE ENHANCEMENT MODE RF POWER LDMOS TRANSISTOR (Polyfet RF Devices)
  • LX803 - SILICON GATE ENHANCEMENT MODE RF POWER LDMOS TRANSISTOR (Polyfet RF Devices)
  • LX803DE - 0.8Amp Sensitive Triacs (Littelfuse)
  • LX803DT - 0.8Amp Sensitive Triacs (Littelfuse)
  • LX803ME - 0.8Amp Sensitive Triacs (Littelfuse)
  • LX803MT - 0.8Amp Sensitive Triacs (Littelfuse)
  • LX8050PLT1G - NPN Silicon Transistors (LRC)
  • LX807DE - 0.8Amp Sensitive Triacs (Littelfuse)
  • LX807DT - 0.8Amp Sensitive Triacs (Littelfuse)
  • LX807ME - 0.8Amp Sensitive Triacs (Littelfuse)
Other Datasheets by Microsemi Corporation

Full PDF Text Transcription

Click to expand full text

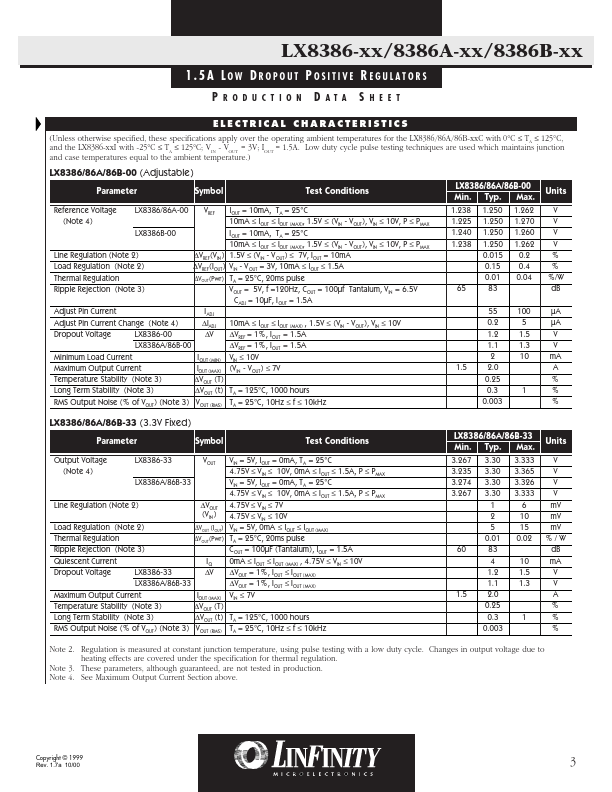

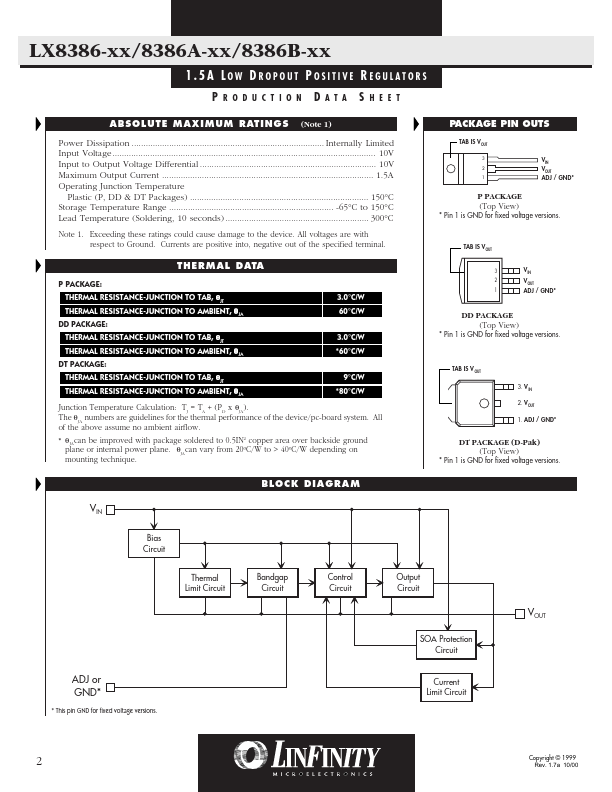

LIN D O C # : 8386 LX8386-xx/8386A-xx/8386B-xx 1 . 5 A LOW DR O P O U T P OSITIVE R E G U L AT O R S T H E I N F I N I T E P O W E R O F I N N O VA T I O N P R O D U C T I O N D A T A S H E E T DESCRIPTION The LX8386/86A/86B series ICs are positive regulators designed to provide 1.5A output current. These regulators yield higher efficiency than currently available devices with all internal circuitry designed to operate down to a 1V input-to-output differential. In this product, the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at a maximum of 1.3V (LX8386A/86B) and 1.5V (LX8386) at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1% (0.
