S16-4150 - Switching Diode Array

Datasheet Summary

Features

  • 8 Isolated lines Standard SOIC 16 pin Surface Mount Package UL 94V-0 Flammability Classification.

📥 Download Datasheet

Datasheet preview – S16-4150

Datasheet Details

Part number S16-4150
Manufacturer Microsemi Corporation
File Size 65.48 KB
Description Switching Diode Array
Datasheet download datasheet S16-4150 Datasheet
Additional preview pages of the S16-4150 datasheet.

📁 Similar Datasheet

  • S16-12S5 - DC/DC MODULES (Intronics Power)
  • S16 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (YS)
  • S16008LK9 - 128Mb :x4 x8 x16 SDRAM (SPECtek)
  • S1602E - LCD MODULE USER MANUAL (Sinco)
  • S16100NH - (S16xxNH) SCR (ST Microelectronics)
  • S1610NH - (S16xxNH) SCR (ST Microelectronics)
  • S1612 - 1.8V CMOS Low Jitter Crystal Clock Oscillator (Pericom)
  • S1616NH - (S16xxNH) SCR (ST Microelectronics)
  • S161COG - LCD Module (Displaytech)
  • S16200NH - (S16xxNH) SCR (ST Microelectronics)
Other Datasheets by Microsemi Corporation

Full PDF Text Transcription

Click to expand full text

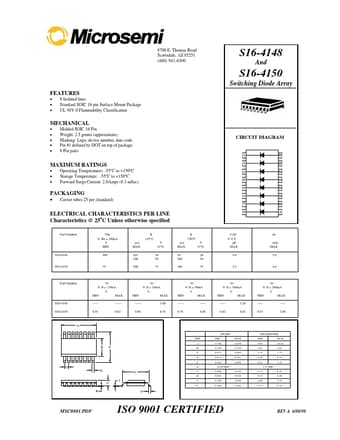

8700 E. Thomas Road Scottsdale, AZ 85251 (480) 941-6300 S16-4148 And S16-4150 Switching Diode Array FEATURES • • • 8 Isolated lines Standard SOIC 16 pin Surface Mount Package UL 94V-0 Flammability Classification • • • • • MECHANICAL Molded SOIC 16 Pin Weight: 2.5 grams (approximate) Marking: Logo, device number, date code Pin #1 defined by DOT on top of package 8 Pin pairs CIRCUIT DIAGRAM MAXIMUM RATINGS • • • Operating Temperatures: -550C to +1500C Storage Temperature: -550C to +1500C Forward Surge Current: 2.0Amps (8.3 mSec) PACKAGING • Carrier tubes 25 per (standard) ELECTRICAL CHARACTERISTICS PER LINE Characteristics @ 250C Unless otherwise specified Part Number Vbr @ Ibr = 100µA V MIN 100 Ir +25°C V @Vr 20 50 75 Ir 150°C V @Vr 20 50 75 CAP @0V pF MAX 4.0 trr (nS) MAX 5.
