SG120

NEGATIVE FIXED VOLTAGE REGULATOR

SG120 Features

* of thermal shutdown, current limiting, and safe-area control have been designed into these units and since these regulators require only a single output capacitor or a capacitor and 5mA minimum load for satisfactory performance, ease of application is assured. Although designed as fixed-voltage regu

SG120 General Description

The SG120 series of negative regulators offer self-contained, fixed-voltage capability with up to 1.5A of load current. With a variety of output voltages and four package options this regulator series is an optimum complement to the SG7800A/ 7800/120 line of three terminal regulators. All protective.

SG120 Datasheet (372.40 KB)

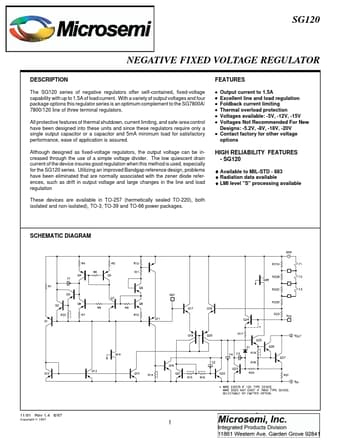

Preview of SG120 PDF

Datasheet Details

Part number:

SG120

Manufacturer:

Microsemi ↗ Corporation

File Size:

372.40 KB

Description:

Negative fixed voltage regulator.
