SMZ24

ZENERarray Series

Microsemi Corporation

SMZ24 Features

* Provides common-anode-dual zeners 3.3 to 200 volts Provides unidirectional zener-regulation for 2 lines to ground for pins 1 to 3 and pins 2 to 3 or bidirectional regulation between pins 1 and 2 ESD non sensitive Human Body Model (HBM) >15,999 volts per MIL-ST

SMZ24 General Description

This data sheet defines a series of dual zeners with a common anode. It may be used for voltage regulation for two different lines to ground or as a bidirectional voltage regulator between two lines. This product also provides ESD protection per IEC 1000-4-2 and EFT protection per IEC 1000-4-4. FEA.

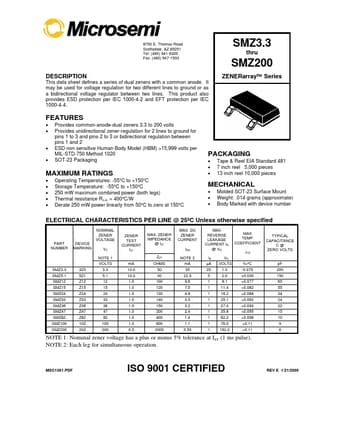

SMZ24 Datasheet (82.34 KB)
