TCP072E, TRIPOLAR PROTECTION

TCP072E thru TCP120E SANTA ANA DIVISION TRIPOLAR PROTECTION FOR ISDN INTERFACES PRODUCT PREVIEW .
KEY FEATURES !" BIDIRECTIONAL TRIPLE CROWBAR PROTECTION !" PEAK PULSE CURRENT: IPP = 30 A, 10/1000 µs !" BREAKDOWN VOLTAGE: TCP072E: 60 V TCP080E: 80.

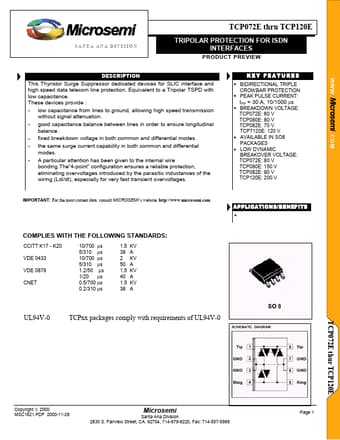

datasheet Preview Page 1 from Datasheet4u.com

TCP072E_MicrosemiCorporation.pdf

TCP072E Datasheet Preview — Preview of TCP072E PDF

Datasheet Details

Part number:

TCP072E

Manufacturer:

Microsemi ↗ Corporation

File Size:

390.85 KB

Description:

TRIPOLAR PROTECTION

Features

* !" BIDIRECTIONAL TRIPLE CROWBAR PROTECTION !" PEAK PULSE CURRENT: IPP = 30 A, 10/1000 µs !" BREAKDOWN VOLTAGE: TCP072E: 60 V TCP080E: 80 V TCP082E: 70 V TCP7120E: 120 V
* AVAILABLE IN SO8 PACKAGES
* LOW DYNAMIC BREAKOVER VOLTAGE: TCP072E: 80 V TCP080E: 150 V TCP082E: 90 V TCP120E: 20

Applications

* BENEFITS APPLICATIONS/BENEFITS !" COMPLIES WITH THE FOLLOWING STANDARDS: CCITT K17 - K20 VDE 0433 VDE 0878 CNET 10/700 µs 5/310 µs 10/700 µs 5/310 µs 1.2/50 µs µs 1/20 0.5/700 µs 0.2/310 µs 1.5 38 2 50 1.5 40 1.5 38 KV A KV A KV A KV A UL94V-0 TCPxx packages comply with requirements of UL94V-0 T
