1011GN-125E - Earless Driver GaN Transistor

Datasheet Summary

Features

1030-1090MHz.
125W Pulsed Output Power.
128µs-1mS, 10% Pulsing.
Common Source.
Class AB.
50VDD Bias Voltage.
>70% Efficiency Across the Frequency Band.
Extremely Compact Size.
18.7 dB Typical Power Gain.
0.1 dB Typical Excellent Gain Flatness.
IFF, Mode-S, TCAS Avionics Secondary Radars.
All gold metallization and eutectic die attach for highest reliability.
50Ω in/out lumped element very small footprint plug & pla.

Microsemi

📥 Download Datasheet

Datasheet Details

Part number	1011GN-125E
Manufacturer	Microsemi
File Size	524.64 KB
Description	Earless Driver GaN Transistor
Datasheet	1011GN-125E Datasheet

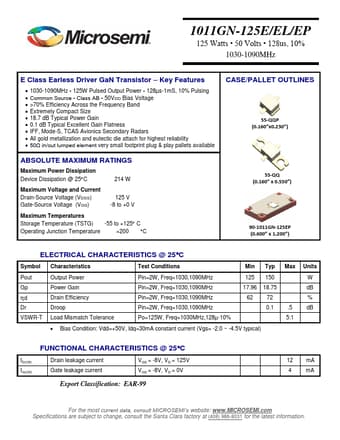

Additional preview pages of the 1011GN-125E datasheet.

📁 Similar Datasheet

10116 - Line Receiver / Triple Differential Line Receiver (Philips)
10118 - Dual 2 Wide 3 Input OR-AND Gate (Philips)
10119 - 4 Wide 4-3-3-3- Input OR-AND Gate (Philips)
101-220005-03A - 101-220005-03A (ETC)
1010 - Tube Redresseur Biplaque (Philips)
10100 - Quad 2 Input NOR Gate (Philips)
10102 - Quad 2 Input Nor Gate (Philips)
1010PT - Phase Control Thyristors (nELL)
1010VS - High Current Power Inductors (Coilcraft)
10123 - Bus Driver (Philips)

Other Datasheets by Microsemi

101529C - LR1000-500-1.5 Multiple Channel Delay Line-Module

Full PDF Text Transcription

Click to expand full text

1011GN-125E/EL/EP 125 Watts • 50 Volts • 128us, 10% 1030-1090MHz E Class Earless Driver GaN Transistor – Key Features  1030-1090MHz • 125W Pulsed Output Power • 128µs-1mS, 10% Pulsing  Common Source • Class AB • 50VDD Bias Voltage  >70% Efficiency Across the Frequency Band  Extremely Compact Size  18.7 dB Typical Power Gain  0.1 dB Typical Excellent Gain Flatness  IFF, Mode-S, TCAS Avionics Secondary Radars  All gold metallization and eutectic die attach for highest reliability  50Ω in/out lumped element very small footprint plug & play pallets available CASE/PALLET OUTLINES 55-QQP (0.160”x0.
