15KPA130Ae3, 15KPA17Ae3 Datasheet - Microsemi

15KPA130Ae3 TVS

This device clamps dangerous high-voltage short-term transients such as those produced by the secondary effects of lightning strikes, providing circuit protection to several class levels in the IEC61000-4-5 specification. Clamping time is virtually instantaneous. It also provides protection from tra.

15KPA130Ae3 Features

* Available in both unidirectional and bidirectional configurations.

* 5% working voltage tolerance.

* Moisture classification is Level 1 with no dry pack required per IPC/JEDEC J-STD-020B.

* RoHS compliant (2002/95/EC), MSL level 1 (J-STD-020). APPLICATIONS / BENEFIT

15KPA17Ae3-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 15KPA130Ae3, 15KPA17Ae3. Please refer to the document for exact specifications by model.

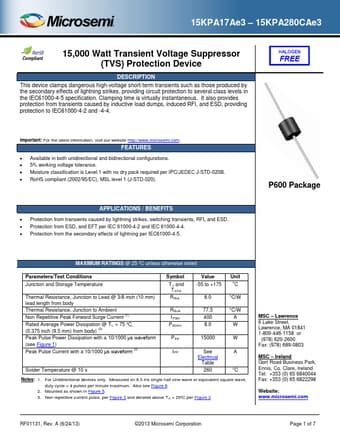

15KPA130Ae3 Datasheet Preview Page 2 15KPA130Ae3 Datasheet Preview Page 3

Datasheet Details

Part number:

15KPA130Ae3, 15KPA17Ae3

Manufacturer:

Microsemi ↗

File Size:

437.07 KB

Description:

Tvs.

Note:

This datasheet PDF includes multiple part numbers: 15KPA130Ae3, 15KPA17Ae3.
Please refer to the document for exact specifications by model.
