15KPA150Ae3

TVS

Microsemi

15KPA150Ae3 Features

* Available in both unidirectional and bidirectional configurations.

* 5% working voltage tolerance.

* Moisture classification is Level 1 with no dry pack required per IPC/JEDEC J-STD-020B.

* RoHS compliant (2002/95/EC), MSL level 1 (J-STD-020). APPLICATIONS / BENEFIT

15KPA150Ae3 General Description

This device clamps dangerous high-voltage short-term transients such as those produced by the secondary effects of lightning strikes, providing circuit protection to several class levels in the IEC61000-4-5 specification. Clamping time is virtually instantaneous. It also provides protection from tra.

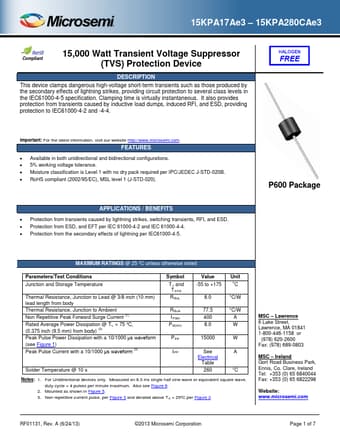

15KPA150Ae3 Datasheet (437.07 KB)
