1N2804B - 50 Watt Zener Diodes

1N2804B Description

1N2804B * 1N2846RB and 1N4557B * 1N4564RB Available on commercial versions 50 Watt Zener Diodes Qualified per MIL-PRF-19500/114 DES.
This series of high power 50W Zener diodes, JEDEC registered 1N2804B through 1N2846B and 1N4557B through 1N4564B, provide voltage regulation in values.

1N2804B Features

* JEDEC registered IN2804 through 1N2846B and 1N4557 through 1N4564B numbers.
* Internal solder bond construction.
* Hermetically sealed (welded).
* Zener voltage 3.9 V to 200 V.
* JAN, JANTX, and JANTXV qualifications also available per MIL-PRF-19500/114 on m

📥 Download Datasheet

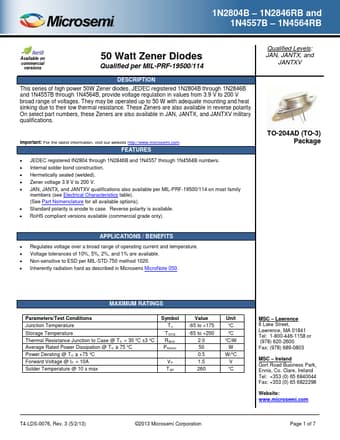

Preview of 1N2804B PDF
