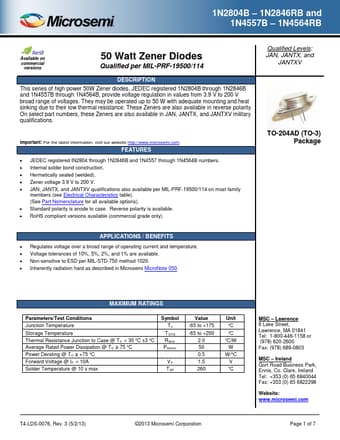

1N2811B Datasheet - Microsemi

1N2811B 50 Watt Zener Diodes

This series of high power 50W Zener diodes, JEDEC registered 1N2804B through 1N2846B and 1N4557B through 1N4564B, provide voltage regulation in values from 3.9 V to 200 V broad range of voltages. They may be operated up to 50 W with adequate mounting and heat sinking due to their low thermal resista.

1N2811B Features

* JEDEC registered IN2804 through 1N2846B and 1N4557 through 1N4564B numbers.

* Internal solder bond construction.

* Hermetically sealed (welded).

* Zener voltage 3.9 V to 200 V.

* JAN, JANTX, and JANTXV qualifications also available per MIL-PRF-19500/114 on m
