1N2831B, 1N2804B - 50 Watt Zener Diodes

Name: 1N2831B
SKU: 1N2831B-1386835

Microsemi

📥 Download Datasheet

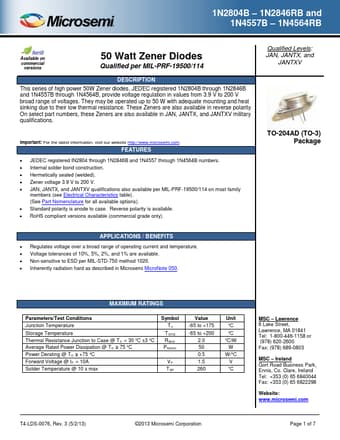

1N2831B Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N2831B, 1N2804B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	1N2831B, 1N2804B
Manufacturer	Microsemi
File Size	547.67 KB
Description	50 Watt Zener Diodes
Datasheet	1N2804B-Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N2831B, 1N2804B. Please refer to the document for exact specifications by model.

1N2831B Product details

Description

This series of high power 50W Zener diodes, JEDEC registered 1N2804B through 1N2846B and 1N4557B through 1N4564B, provide voltage regulation in values from 3.9 V to 200 V broad range of voltages.

Features

JEDEC registered IN2804 through 1N2846B and 1N4557 through 1N4564B numbers.
Internal solder bond construction.
Hermetically sealed (welded).
Zener voltage 3.9 V to 200 V.
JAN, JANTX, and JANTXV qualifications also available per MIL-PRF-19500/114 on most family members (see E.
