1N4057A

High Voltage Temperature Compensated Zener Reference Diodes

1N4057A General Description

The 1N4057 thru 1N4085A series of Zero-TC Reference Diodes provides a wide selection of nominal voltages ranging from 12.4 V to 200 V with low temperature coefficients of either 0.005%/C or 0.002%/oC for minimal voltage change with temperature. This is achieved at the specified test currents of 10.0.

1N4057A Datasheet (168.86 KB)

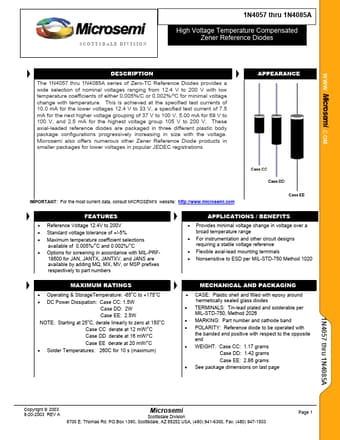

Preview of 1N4057A PDF

Datasheet Details

Part number:

1N4057A

Manufacturer:

Microsemi ↗

File Size:

168.86 KB

Description:

High voltage temperature compensated zener reference diodes.
