1N4110-1 Datasheet 500mW Metallurgically Bonded Glass Zener Diodes

Manufacturer: Microsemi (now Microchip Technology)

Download the 1N4110-1 datasheet PDF. This datasheet also includes the 1N4614-1 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4614-1-Microsemi.pdf) that lists specifications for multiple related part numbers.

General Description

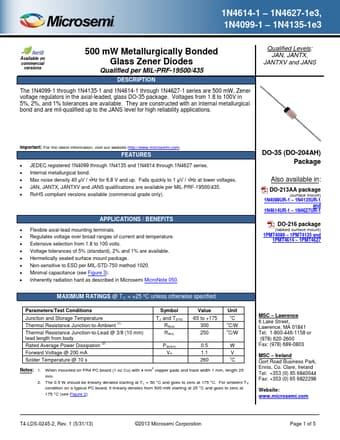

The 1N4099-1 through 1N4135-1 and 1N4614-1 through 1N4627-1 series are 500 mW, Zener voltage regulators in the axial-leaded, glass DO-35 package.

Voltages from 1.8 to 100V in 5%, 2%, and 1% tolerances are available.

They are constructed with an internal metallurgical bond and are mil-qualified up to the JANS level for high reliability applications.

Overview

1N4614-1 – 1N4627-1e3, 1N4099-1 – 1N4135-1e3 Available on commercial versions 500 mW Metallurgically Bonded Glass Zener Diodes Qualified per.

Key Features

  • JEDEC registered 1N4099 through 1N4135 and 1N4614 through 1N4627 series.
  • Internal metallurgical bond.
  • Max noise density 40 μV / √Hz for 6.8 V and up. Falls quickly to 1 μV / √Hz at lower voltages.
  • JAN, JANTX, JANTXV and JANS qualifications are available per MIL-PRF-19500/435.
  • RoHS compliant versions ava.
