1N4117-1 500mW Metallurgically Bonded Glass Zener Diodes

The 1N4099-1 through 1N4135-1 and 1N4614-1 through 1N4627-1 series are 500 mW, Zener voltage regulators in the axial-leaded, glass DO-35 package. Voltages from 1.8 to 100V in 5%, 2%, and 1% tolerances are available. They are constructed with an internal metallurgical bond and are mil-qualified up t.

1N4117-1 Features

* JEDEC registered 1N4099 through 1N4135 and 1N4614 through 1N4627 series.

* Internal metallurgical bond.

* Max noise density 40 μV / √Hz for 6.8 V and up. Falls quickly to 1 μV / √Hz at lower voltages.

* JAN, JANTX, JANTXV and JANS qualifications are available per MI

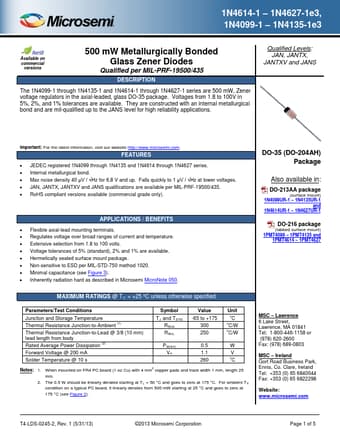

1N4117-1 Datasheet (273.07 KB)
