1N4126-1, 1N4614-1 - 500mW Metallurgically Bonded Glass Zener Diodes

Microsemi

Datasheet Details

Part number	1N4126-1, 1N4614-1
Manufacturer	Microsemi
File Size	273.07 KB
Description	500mW Metallurgically Bonded Glass Zener Diodes

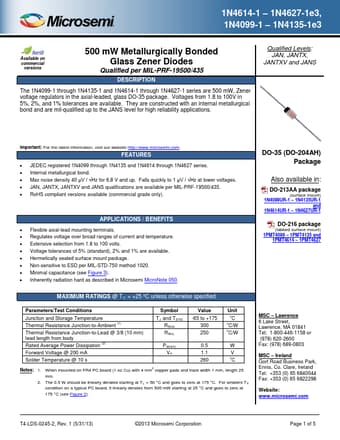

Datasheet	1N4614-1-Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N4126-1, 1N4614-1. Please refer to the document for exact specifications by model.

The 1N4099-1 through 1N4135-1 and 1N4614-1 through 1N4627-1 series are 500 mW, Zener voltage regulators in the axial-leaded, glass DO-35 package.

JEDEC registered 1N4099 through 1N4135 and 1N4614 through 1N4627 series.
Internal metallurgical bond.
Max noise density 40 μV / √Hz for 6.8 V and up. Falls quickly to 1 μV / √Hz at lower voltages.
JAN, JANTX, JANTXV and JANS qualifications are available per MIL-PRF-19500/435.
RoHS compliant versions ava.
