1N4549B - 50WATT ZENER DIODES

1N4549B Description

WWW.Microsemi .COM SCOTTSDALE DIVISION 1N3305 thru 1N3350B and 1N4549B thru 1N4556B 50 WATT ZENER DIODES .
These high power 50 W Zener diodes represented by the JEDEC registered 1N3305 thru 1N3350B and 1N4549 thru 1N4556B series provide voltage regulation i.

1N4549B Features

* JEDEC registered 1N3305 thru 1N3350B and 1N4549 thru 1N4556B
* Internal solder bond construction
* Hermetically sealed (welded)
* Zener Voltage 3.9V to 200V.
* Also available in JAN, JANTX, and JANTXV qualifications per MIL-PRF-19500/358 by adding the JAN, J

📥 Download Datasheet

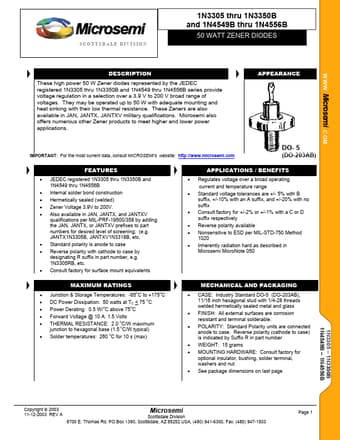

Preview of 1N4549B PDF
datasheet Preview Page 2 datasheet Preview Page 3
