1N4564B

50 Watt Zener Diodes

1N4564B Features

* JEDEC registered IN2804 through 1N2846B and 1N4557 through 1N4564B numbers.

* Internal solder bond construction.

* Hermetically sealed (welded).

* Zener voltage 3.9 V to 200 V.

* JAN, JANTX, and JANTXV qualifications also available per MIL-PRF-19500/114 on m

1N4564B General Description

This series of high power 50W Zener diodes, JEDEC registered 1N2804B through 1N2846B and 1N4557B through 1N4564B, provide voltage regulation in values from 3.9 V to 200 V broad range of voltages. They may be operated up to 50 W with adequate mounting and heat sinking due to their low thermal resista.

1N4564B Datasheet (542.30 KB)

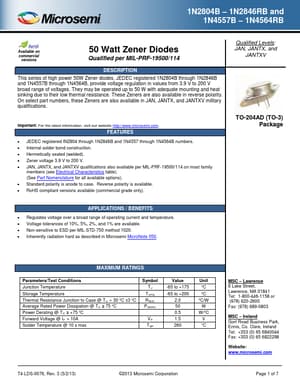

Preview of 1N4564B PDF

Datasheet Details

Part number:

1N4564B

Manufacturer:

Microsemi ↗

File Size:

542.30 KB

Description:

50 watt zener diodes.
1N2804B

* 1N2846RB and 1N4557B

* 1N4564RB Available on commercial versions 50 Watt Zener Diodes Qualified per MIL-PRF-19500/114 DES.
