1N5250UR-1, 1N5221UR-1 Datasheet - Microsemi

1N5250UR-1 METALLURGICALLY BONDED GLASS SURFACE MOUNT 500mW ZENERS

The 1N5221BUR-1 thru 1N5281BUR-1 series of 0.5 watt Zener Voltage Regulators provides a surface mount equivalent to the popular JEDEC registered 1N5221B to 1N5281B for 2.4 to 200 volts in a metallurgically bonded configuration. They are available with standard 5%, 10%, or 20% tolerances as well as t.

1N5250UR-1 Features

* Surface mount equivalents to the JEDEC registered 1N5221 thru 1N5281B series

* Hermetically sealed surface mount package

* Internal metallurgical bond

* Options for screening in accordance with MIL-PRF19500 for JAN,

1N5221UR-1-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 1N5250UR-1, 1N5221UR-1. Please refer to the document for exact specifications by model.

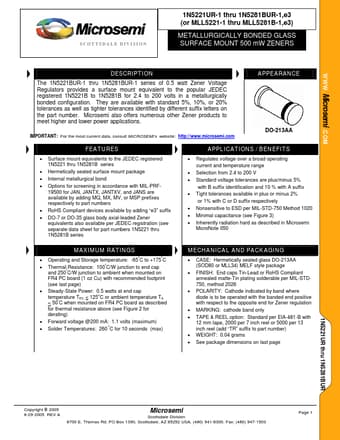

1N5250UR-1 Datasheet Preview Page 2 1N5250UR-1 Datasheet Preview Page 3

Datasheet Details

Part number:

1N5250UR-1, 1N5221UR-1

Manufacturer:

Microsemi ↗

File Size:

100.74 KB

Description:

Metallurgically bonded glass surface mount 500mw zeners.

Note:

This datasheet PDF includes multiple part numbers: 1N5250UR-1, 1N5221UR-1.
Please refer to the document for exact specifications by model.
